Brand Name : | RFM |
Model Number : | CU&UD |
Certification : | CE,ISO |
Price : | USD 7000-20000 set |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 40 sets one month |
Delivery Time : | 30 days |

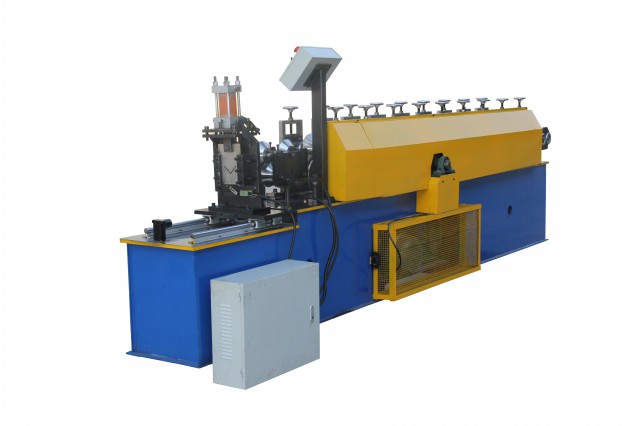

Stud and Track ,C Channel ,U Channel Roll Forming Machine For Drywall
2, We do Detail, Machine Parameters
Product name | Wall Angle Roll Forming Machine | |||
NO. | Items | Parameters | Remark | |
1 | Suitable Material | Type | GI/GL | |
Width | According to drawing | Custom | ||
Thickness | 0.50—1.0mm | |||
2 | Product Specifications | Length | Any length | Programmed |
Length Tolerance | ±2mm/6m | |||
3 | Working Speed | 40 m/min | Standard machine | |
4 | Control System | Mitsubishi/Siemens PLC& transducer | Custom | |
5 | Total Power | About 10KW | ||
6 | Total Weight | About 3T | Up to final design |
3, We do Standard, Machine Components
For UD&CU stud track roll forming machine, according to our company standard, we will offer you following components as the standard configuration.
![]() |
