    C U L W Light Gauge Metal Stud And Track Roll Forming Machine For Roof

    Ask Lasest Price
    Brand Name : RFM
    Model Number : CU&UD
    Certification : CE,ISO
    Price : pls check with supplier
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 40 sets one month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

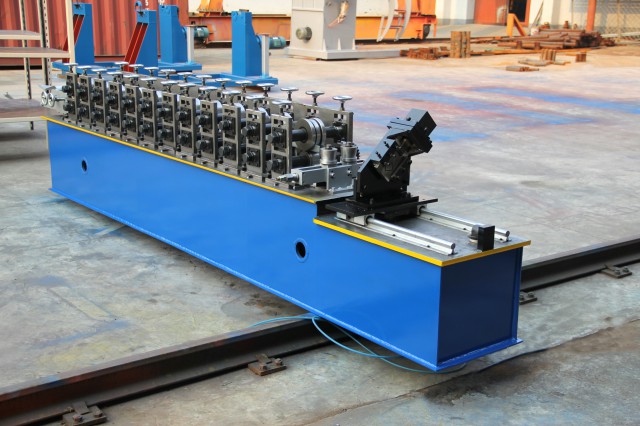

    C U L W Light Gauge Metal Stud And Track Roll Forming Machine For Roof

    C U L W Light Gauge Metal Stud And Track Roll Forming Machine


    Product Description

    stud and U track are two important accessaries for the ceiling construction. Most customers who buy C stud Roll Forming Machine will also buy U track roll forming machine.

    In order to meet this requirements we develop combined Drywall Ceiling Profiles pop channel making machine.

    2, We do Detail, Machine Parameters

    Product name

    C U L W Light Gauge Metal Stud And Track Roll Forming Machine

    NO.

    Items

    Parameters

    Remark

    1

    Suitable

    Material

    Type

    GI/GL

    Width

    According to drawing

    Custom

    Thickness

    0.30—1.0mm

    2

    Product

    Specifications

    Length

    Any length

    Programmed

    Length Tolerance

    ±2mm/6m

    3

    Working Speed

    40 m/min

    Standard machine

    4

    Control System

    Mitsubishi/Siemens PLC& transducer

    Custom

    5

    Total Power

    About 10KW

    6

    Total Weight

    About 3T

    Up to final design

    3, We do Standard, Machine Components

    For C U L W Light Gauge Metal Stud And Track Roll Forming Machine, according to our company standard, we will offer you following components as the standard configuration.

    In addition,the cutting system can be designed as non stopping hydraulic cutting. Machine normal speed is 25 meters/min, high speed is as 45-50 meters/min.
