    Automatic C Channel Roll Forming Machine Chain Drive Type With Variable Width

    Ask Lasest Price
    Brand Name : FEIXIANG
    Model Number : FX C purlin
    Certification : CE,ISO
    Payment Terms : Western Union, T/T, L/C, D/A, D/P, MoneyGram
    Supply Ability : 30 SETS ONE MONTH
    Delivery Time : 40 DAYS
    • Product Details
    • Company Profile

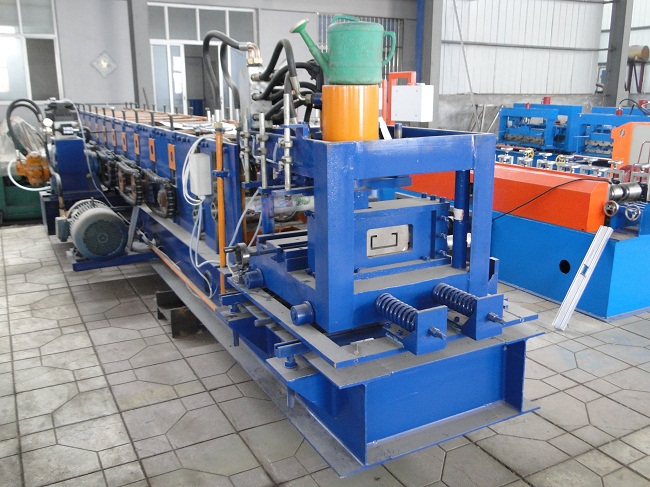

    Automatic C Channel Roll Forming Machine Chain Drive Type With Variable Width

    Automatic C Channel Roll Forming Machine Chain Drive Type With Variable Width


    Specifications

    1. Automatic C Channel Roll Forming Machine Chain Drive Type With Variable Width

    2. high precise and run throughly
    3. reliable quality with CE,BV,ISO certification
    4. professional service and engineer
    5. good reputation and trustable


    Model:C&U Type


    Configurations

    Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.

    Control System

    PLC Panasonic Inverter

    Main Frame

    350mm H-Beam

    Main Power

    15 kw

    Pump Power

    7.5kw

    Power Supply

    3Phase,380V,50Hz

    Forming Speed

    12-14m/min

    Hydraulic Pressure

    18-20MPa

    Forming Size

    80-300mm

    Feeding Thickness

    1.5-3.2mm

    Roller Station

    14 Stands

    Roller Diameter

    80mm

    Backboard Thickness

    18mm

    Chain Size

    66mm

    Cutter Standard

    Cr12

    Roller Standard

    Cr12

    Cr-Plating Size

    0.05mm

    Overall Size

    9500×1400×1350mm

    Total Weight

    6T


    All technical parameters can be changed,according to user's need.



    We want to know following information.


    1), What is the exact profile you want to produce?

    2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?

    3), What kind of decoiler and stacker you need?

    Pls contact us as below informaiton,hope can cooperate,thanks advance
