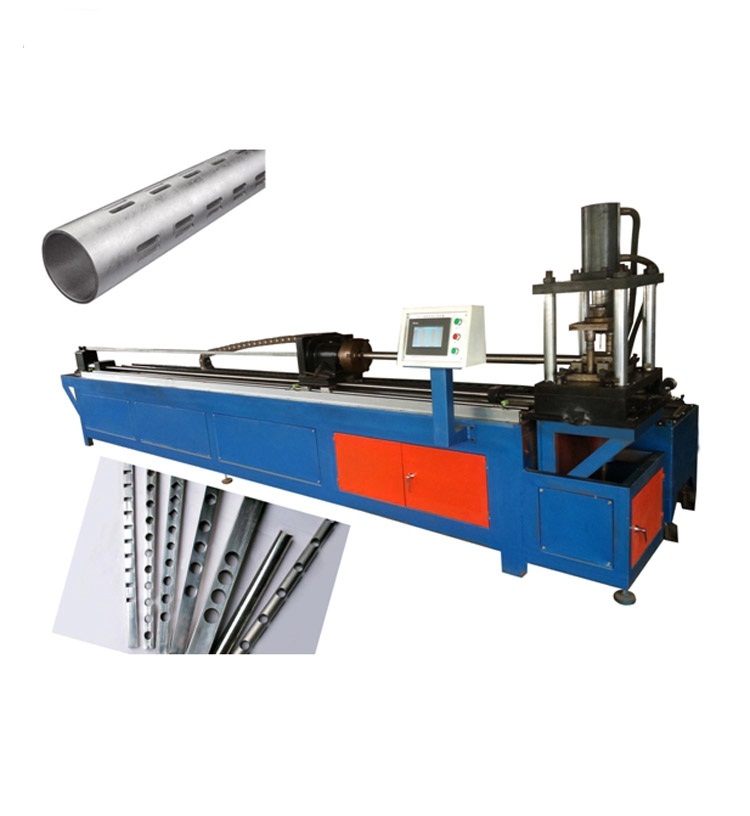

Automatic double line round carbon steel pipe tube punching machine

Usage:

This round pipe punching machine is NC control, for punching & drawing tapered holes on round tubes,copper,stainless steel,aluminum,steel, etc., especially the flute tube for solar pipe and air conditioner pipe purpose.

Main features of the round pipe punching machine:

l Servo feeding, hydraulic forming
l NC control, convenient operation
l Good punching & drawing result, high efficient


Main technical data of the round pipe punching machine:

Structure and configuration of the round pipe punching machine

3.1 Composition: main body, feeding device, punching device, rotating device, clamping device, hydraulic system, electric control system and cooling system.
3.2 Hydraulic station is equipped with air cooling system.
3.3 Hydraulic valves and pump are from Taiwan
3.4 PLC + touch screen control from Japan; Servo motor is from Taiwan
3.5 Control system has automatic counting function which can count processing quantity.
3.6 Processing data can be pre-set and saved in the PLC and can be recalled for next time use.

Supplying range of the round pipe punching machine:

4.1 Complete machine
4.2 One set of punching die (according to Buyer’s drawing)
4.3 Operation manual, electric drawing, hydraulic drawing
4.4 Tool kit

Sample photos made by the round pipe punching machine:


We, Hebei Feixiang Roll Forming Machinery Co., Ltd., are specialized in machines for more than 20 years. We can provide you good quality round pipe punching machine as well as good services.

Feixiang roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines. It is a division of its parent company, Xingbo International.

Feixiang was founded in 1997 and is the oldest roll forming machine maker around today in the north of china. Its history includes the first double layer color steel roll forming machine,the first high speed interchangeable C U keel roll forming machine,the first gear drive with water cooling cable tray roll forming machine created by Mr.Fu in 2005.

In 2013,they first successfully developed high speed rotary punching machine ,which highest speed could be 100m/min,makes the company got government recognition.

The company marketed overseas its first roll forming machine in 2006 and established relations of cooperation with customers from over 80 countries all around the world. Feixiang has built up a reputation for designing high-quality, high-speed ,safe and cost-effective cold forming and bending equipments .

They have become a status symbol for high productive capacity and the safe and easy operate. The company is synonymous with technical and has been involved with several famous international exhibition since 2008.

The company currently has 2 invention patents, 1 utility model patents,has been accepted by the 1 invention patents, 2 utility model patents. Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy" .
