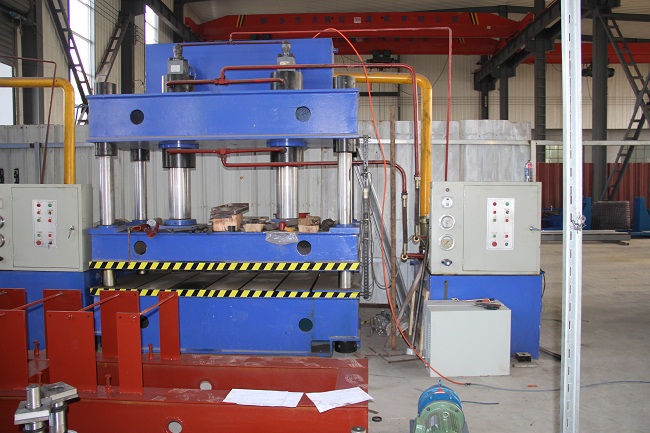

200 Ton CNC Hydraulic Punching Press Machine with Die Cushion

Provide Customized Personalized Service

200ton CNC Punching Press Machine 200ton with Die Cushion

Product Features :

* With high rigidity rack design, they are welded with the use of high- quality steel plates, through relieving of internal stresses, so that stability and reliability of the whole machine in precision are enhanced.

* Consistent driving center and machine center to guarantee accurate and stable punching.

* In order to guarantee relative stationarity of machine operation, it is necessary to equip with two balancers.

* Moulding-adjustment precision is as high as 0.1mm, safe, speedy, and reliable.

* Through hard oxidation and grinding, such parts as bent axles, gear sets, and connecting rods possess higher combination property and tolerance.

* Adopt highly sensitive and reliable clutch/brake and internationally top duplex magnetic valve, as well as overload protection devices, to guarantee precision and safety for operation and stop of press rams.

* Machine’s structural design shall be reasonable, for the convenience of realizing automatic production, reducing cost, and improving efficiency.

* Possess advanced design concepts, low noise, low consumption, and energy saving.

Standard configuration :

* Inverter

* Hydraulic over-load protector

* Slide adjuster (60Tons and below)

* Slide adjust device (80Tons and above)

* Die height indicator (60Tons and below)

* Die height indicator (60Tons and above)

* Balance device

* Rotary cam switch

* Misfeed detection consent

* Power supply

* Crank angle indicator

* Electrical stroke counter

* Air source connector

* Against over-run safety device

* Air ejector

* Maintenance tool box

* Operation manual

Optional Configuration :

* High performance wet clutch & brake

* Electrical automatic lubrication system

* Pneumatic die cushion device

* Foot switch

* Quick die change device (die lifter, clamp and die arm sepjes)

* Slide knock-out device

* Anti-vibration press mount

* Photo-electronic safety device

* Feeder

* Uncoiler

* Leveler

* Mechanism hand

* Die room light

* Touch pad (preset total counter)

* PAC 100 counter system

* Human-computer control system

Feixiang roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines. It is a division of its parent company, Xingbo International.

Feixiang was founded in 1997 and is the oldest roll forming machine maker around today in the north of china. Its history includes the first double layer color steel roll forming machine,the first high speed interchangeable C U keel roll forming machine,the first gear drive with water cooling cable tray roll forming machine created by Mr.Fu in 2005.

In 2013,they first successfully developed high speed rotary punching machine ,which highest speed could be 100m/min,makes the company got government recognition.

The company marketed overseas its first roll forming machine in 2006 and established relations of cooperation with customers from over 80 countries all around the world. Feixiang has built up a reputation for designing high-quality, high-speed ,safe and cost-effective cold forming and bending equipments .

They have become a status symbol for high productive capacity and the safe and easy operate. The company is synonymous with technical and has been involved with several famous international exhibition since 2008.

The company currently has 2 invention patents, 1 utility model patents,has been accepted by the 1 invention patents, 2 utility model patents. Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy" .
