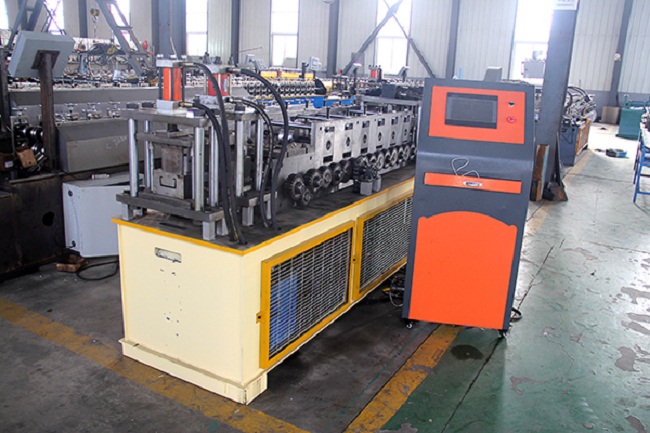

Light steel villa house keel frame roll forming machine with punching

Suitable material:

Material: Galvanized steel or Stainless steel

Feeding width:Based on customer’s request

Material thickness:0.8-1.5mm

Yield strength:235-450mpa

Equipment info:

Brand: Feixiang

Model number: FX-89

Machine size: 4500*1100*1300mm

Weight: 3.5T

Voltage requirement: 380v60hz3p

Working speed:3-8m/min

Machine components

Technical requests:

Machine base: 350# steel welded

Frame: 29mm column plate

Forming stations: 8 steps

Roller: Cr12

Shaft: 45#steel,diameter 50mm

Gear: Harbin

Chain: Gear

PLC: Delta

Motor: 5.5kw

Counter:Chint

Pump: Yuken 4kw

Press mold:Cr12 Mov

Cutter: Cr12

Our service:

Warranty: 1 year

After-sales service: 24h*7days*1year’s on line and engineer service overseas

Feixiang roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines. It is a division of its parent company, Xingbo International.

Feixiang was founded in 1997 and is the oldest roll forming machine maker around today in the north of china. Its history includes the first double layer color steel roll forming machine,the first high speed interchangeable C U keel roll forming machine,the first gear drive with water cooling cable tray roll forming machine created by Mr.Fu in 2005.

In 2013,they first successfully developed high speed rotary punching machine ,which highest speed could be 100m/min,makes the company got government recognition.

The company marketed overseas its first roll forming machine in 2006 and established relations of cooperation with customers from over 80 countries all around the world. Feixiang has built up a reputation for designing high-quality, high-speed ,safe and cost-effective cold forming and bending equipments .

They have become a status symbol for high productive capacity and the safe and easy operate. The company is synonymous with technical and has been involved with several famous international exhibition since 2008.

The company currently has 2 invention patents, 1 utility model patents,has been accepted by the 1 invention patents, 2 utility model patents. Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy" .
