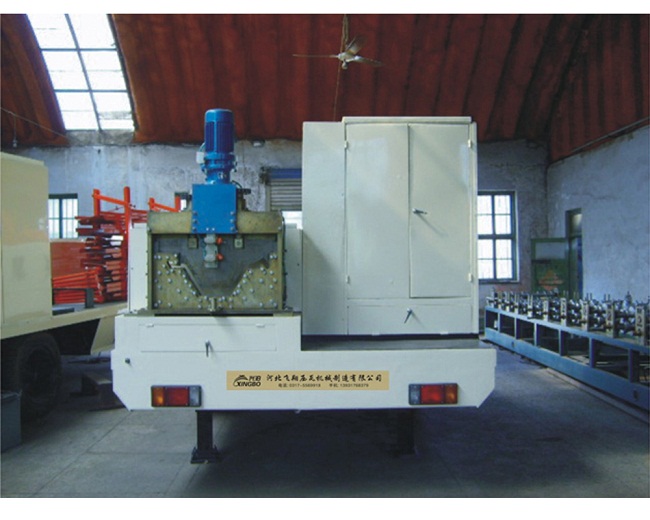

No roof beam large span curving steel panel roll forming machine

Technical Parameter :

no-beam arch curving roof tile forming machine

Dimension : 8900mm * 2230mm * 2300mm (Single axle & 4 tires)

Total Weight : About 8 Ton

Bending Leaf : 10mm thickness, processed by CNC

Cutting blade : 12CrMoV material, Heat treatment

Cutting type : Mechanical Cutting

Forming type: Roll -formed and length-set cutting.

Total motor power : 19.7KW

Main Motor Power : 7.5KW

Bending Power : 3.0KW+1.5KWx2

Cutting Power : 4.0KW

Seaming Power: 1.1KW+1.1KW

Rol er Material : 45# high-quality steel, quenched HRC 55~65, hard chrome plating.

Shaft Material : 45# high-quality steel, galvanized

Bearing : Made in Zhongtuo

Stand of molding : 13+1

Rol ing material: Width : Feeding width : 1250mm

Effective width : 800mm

Using rate : 66.7%

Thickness : 0.8-1.5mm

Working Speed : Forming Part : 15m/min

Bending Part: 13m/min

Seaming : 16m/min

There are other machine types for your reference,or we can produce according to your requirement!

Warranty:

1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and

USD80/person/day for salary.

3. Need one technicians

4. Training time: one week (contains the time of installation and adjustment)

Final sheet

Feixiang roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines. It is a division of its parent company, Xingbo International.

Feixiang was founded in 1997 and is the oldest roll forming machine maker around today in the north of china. Its history includes the first double layer color steel roll forming machine,the first high speed interchangeable C U keel roll forming machine,the first gear drive with water cooling cable tray roll forming machine created by Mr.Fu in 2005.

In 2013,they first successfully developed high speed rotary punching machine ,which highest speed could be 100m/min,makes the company got government recognition.

The company marketed overseas its first roll forming machine in 2006 and established relations of cooperation with customers from over 80 countries all around the world. Feixiang has built up a reputation for designing high-quality, high-speed ,safe and cost-effective cold forming and bending equipments .

They have become a status symbol for high productive capacity and the safe and easy operate. The company is synonymous with technical and has been involved with several famous international exhibition since 2008.

The company currently has 2 invention patents, 1 utility model patents,has been accepted by the 1 invention patents, 2 utility model patents. Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy" .
