Top Quality HR CR SS GI Steel Coils Slitting Machine for Sale

1. The chart of process flow:
Decoiling--feeding--leveling--cutting-slitting--recoiling

2. Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

3. Technical parameters
1)Profile
A.thickness:>3mm

B. Feeding width:as you need(1000/1200/1250/1500)

2) inner tight decoiler
A. coil inner diameter:450mm--550mm
B. max width of coiling:1200mm
C.max weight of loading:5000kg

3) Levelling machine

1 Shaft material:45# steel quenching and retempering treatment,, outer diameter 85mm

2 Number of shaft:1 step of feeding , leveling shaft up: 5 pieces, down: 6 pieces

3 Gear transport

4 Max Forming speed:40m/min



4)cutting system
A.hydraulic cutter
B.Blade and mould material:Cr12 steel with quenched treated 60-62
Cutting system advanced hydraulic drive,after automatic cutting after forming.no

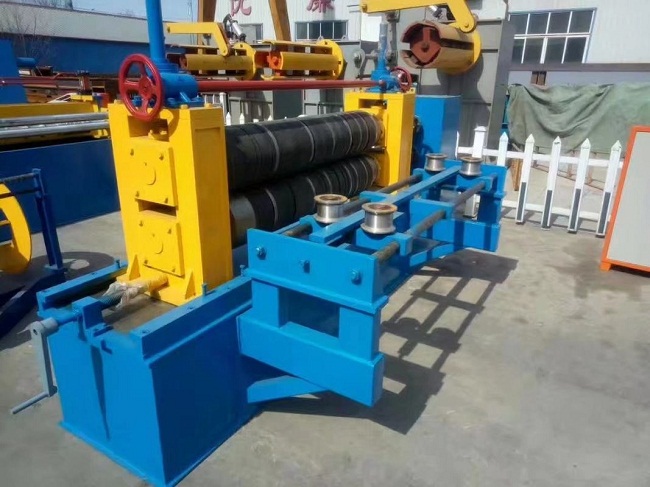

5). Slitting device

1 Material width for slitting:740mm and 925m

2 slitting width:185mm

3 Number of strip:4 strips or 5strips

4 Width tolerance: ±1mm

5 Slitting Speed: 40 m/min


6) control system
A. PLC: taida form Taiwan
B. Coder:from south korea


7)1. material coil inner diameter:450mm--550mm

2 max coil width: 1250mm

3. carrying capacity:5000kg
4 .Manual expanding

4.Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery:within 60 working day after receipt of deposit.

5.Warranty

1. One year, and we will provide the technical support for the whole life.

2. Trainning: the buyer should charge of visa, return ticket, food and accommodation overseas .

3. Need one technicians

4. Training time: one week (contains the time of installation and adjustment)

6. Our service

Warranty: 1 year
After-sales service: 24h*7days*1year’s on line and engineer service overseas

Feixiang roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines. It is a division of its parent company, Xingbo International.

Feixiang was founded in 1997 and is the oldest roll forming machine maker around today in the north of china. Its history includes the first double layer color steel roll forming machine,the first high speed interchangeable C U keel roll forming machine,the first gear drive with water cooling cable tray roll forming machine created by Mr.Fu in 2005.

In 2013,they first successfully developed high speed rotary punching machine ,which highest speed could be 100m/min,makes the company got government recognition.

The company marketed overseas its first roll forming machine in 2006 and established relations of cooperation with customers from over 80 countries all around the world. Feixiang has built up a reputation for designing high-quality, high-speed ,safe and cost-effective cold forming and bending equipments .

They have become a status symbol for high productive capacity and the safe and easy operate. The company is synonymous with technical and has been involved with several famous international exhibition since 2008.

The company currently has 2 invention patents, 1 utility model patents,has been accepted by the 1 invention patents, 2 utility model patents. Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy" .
