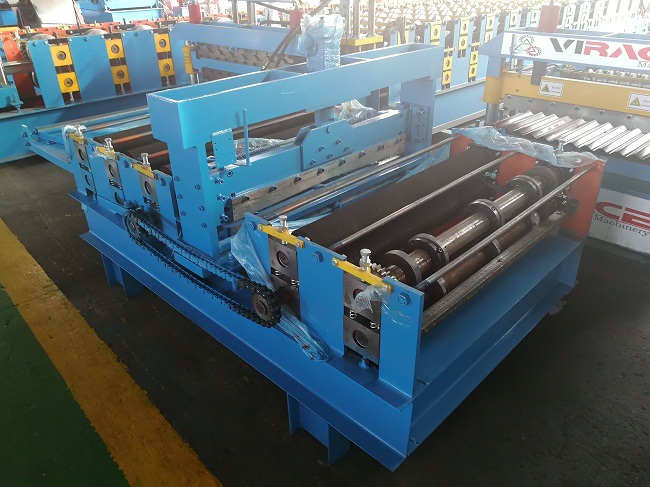

Simple type cold rolled steel coil leveling cutting and slitting
machine
1. Brief of the Machine
This machine is the accessorial equipment for roll forming machine
or folding machine, which is used to slit coil sheet to strips ,
and transfer it to support it. In order to get some nonstandard
width length sheets. It has many advantages such as low noisy,
stable running, simple operation and nice appearance etc.
2. Technical Parameters
Suitable coil width: Material strength The parameter of sheet coil: | 1000-1250mm 230-300Mpa capacity 5T Inner diameter 508 Max Width 1250mm Outer diameter 1350 mm |
slitter: slitted strip width: | 6 pairs Min 60mm(adjustable.) |
| Suitable coil thickness: | 0.5~1.2mm |
Length tolerance +/_ 2mm in 3M in length
Cutting speed: 15 M/min
Motor power: slitter power 3 KW
Hydraulic motor power 3 KW
Cutting cut to length automatically.
Power source: 380V/3phase/50Hz(can be meet your demand)
3 Machine Components
1) Hydraulic uncoiler(Without coil car)
Structure- cantilevered type
Expanding model: hydraulic
Releasing model: hydraulic motor
Control model: light control
Sharing the Hydraulic station with main machine
2) Guiding system
The guiding device are used to guiding the steel sheets into right
position for both sides.
3 ) Leveling device
This feeding device is to fix the sheet,ensure the sheet at right
place.
4 ) Upper and down filming device
Install the filming in the axis,adjust both sections by the
defender,The pressing device is combined by rubber roller.By the
movement of rotating rubber roller,the sheet can be sticked into
the surface of steel sheets when moving forward.
Remark: Taper shape for the filming roller to suit different size
as required by client.
5) Hydraulic cutting
Adopt stop-cutting model: decelerating→stop→cutting→start. Inspect
the sheet length and send out signal by encoder With the PLC
control,the roller system will decelerate in advance,when reach
settled length,the roll forming system will stop working, and cut.
6) Slitter
a) There are several pairs of slitters to slitting the sheets into
strips.The strips width can be adjusted by the slitter postion.(
2&3 in both left and right.one in the middle ,with lower
slitter fixed and the upper slitter movable)
b) The slitter adopt Cr12 die steel with quench treatment.
7) Product supporter
To support the finished sheets from the main machine. Change the
height of supporter by the adjusting screw at the foot to suitable
for the height of finished sheets..
8) Protective fence
Fixed type Protective fence
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled
technicians available, We need your machines running in order to
keep your business running.
Q: Once we've bought a machine from you, are you able to supply us
with material?
A: We can assist you in finding the appropriate materials to suit
your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers
specifications, using top brand name components
Q: What size decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: Terms mutually agreed on and we do accept Letter of Credit by
pre arrangement.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts,
civil requirements, and machine drawings
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission
and install your machine, with training for your staff if required
at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are responsible for the offloading of your machinery, and it
is recommended that you use a reputable rigging company.
Q: My current machine rollers need to be replaced. Would you be
able to assist me?
A: Yes. Send us your profile and specifications then we will
manufacture the rollers for you
Q: What kind of controls do you use on your machines?
A: AMS, Delta, Schneider, Siemens, and Mitsubishi
Q: What is your delivery time?
A: Depending on the type of machine, duration of 25 days to 185
days from date of order.
Q: Do we receive any updates while machine is in the manufacturing
process?
A: Yes.Regular updates on progress will be sent to you.
