FX3-1250mm metal steel sheet coil slitting line shearing machine

Kindly Noted:

1. Minimum strip could be 30mm.

2. Material thickness from 1mm-3mm are all ok.

3. Voltage standard is 380V , 50HZ , 3PH. Other voltage please kindly let us know.

4. Controlled is touch screen control box, optional emengercy stop switch.

5. If customer need more special requirements ,we’ll study with our engineer.

6. Color of the machine is according to the customers.

General description:

This machine is special equipment for the uncoiling,slitting and recoiling the steel sheet according to the requirement of client.

It mainly consists of uncoiler,leveling system,shearing system,slitting system,scrap recoiling system,damping structure,recoiling system,unloading system and so on .

We can design and manufacture different specification to different requirement of the client.

Specifications:

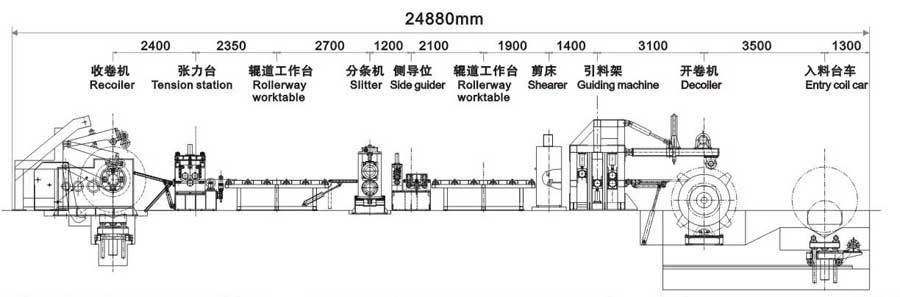

Working flow chart:

Competitive Advantage:

1. Electric control system composed of electric cabinet and manual control panel making it easy to operate.

2. Equipped with slewing bearing which helps increase the loading capacity and makes the rotation smooth.

3. Worktable is manufactured with six M30T bolt grooves used to clamp and position the work pieces.

4. Several concentric grooves are processed onto the surface of the worktable to help position the work piece at the center.

Brand using:

*Inverter is made in Taiwan Delta

*Motor Brand is Chinese brand / Siemens

*Element is made by Schneider /Siemens

*Reducer is made by Chinese

*Bearing is made by Harbin

Display of every parts of Metal steel coil slitting line shearing machine:

a.Coil car and Decoiler

b.Shearing machine

c.Slitting machine

d.Control and Hydraulic system

e. Exit threading table and Recoile

Detailed pictures for reference:

Installation and commissioning:

If customer need installation and commissioning,we’ll send 2 workers to customer’s factory ,including one machinery worker,one electrician .But customer should pay the cost of installation and commissioning.

Why always Feixiang?

360°guarantee makes ordering risk free.

20 years roll forming machine manufacture experiences.

one-stop service of making machine.

Quickly feedback for your problems.
